jeg har en Hustler

6-BTV

Multiband HF

Vertical Antennas

her kan i se mit bud på at sætte en Hustler antenne op,
Weight [kg] 7.50 kgs
Polarisation Vertical
Length [m] 732 cm
Height [m] 732 cm
Supported Bands 10m, 15m, 20m, 30m, 40m, 80m





DXE-HUSTLER.pdf  Tryk på teksten.

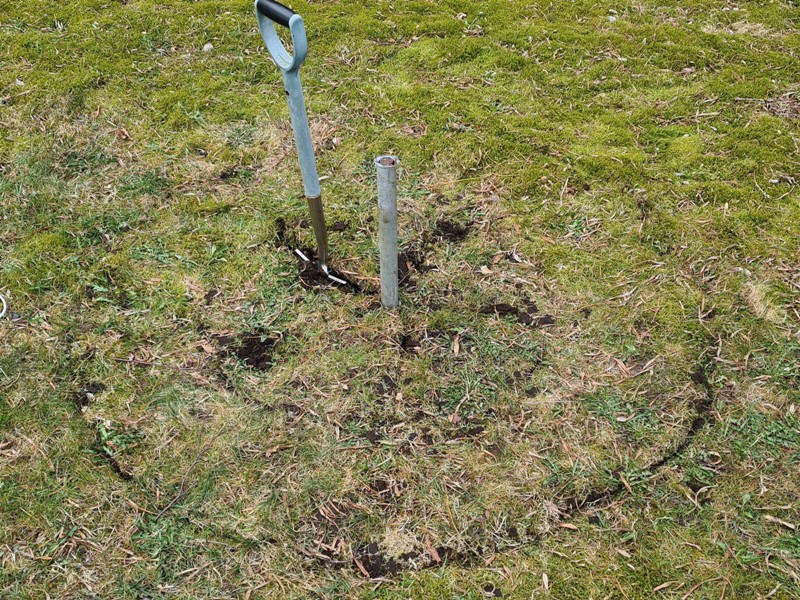

SÅ ER DER MÅLT OP OG DER ER STUKKET FOR MED SPADEN

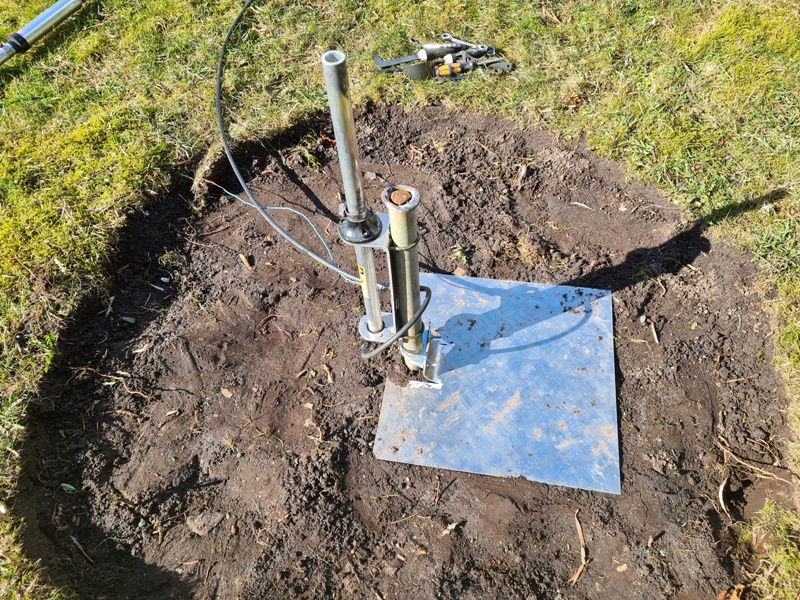

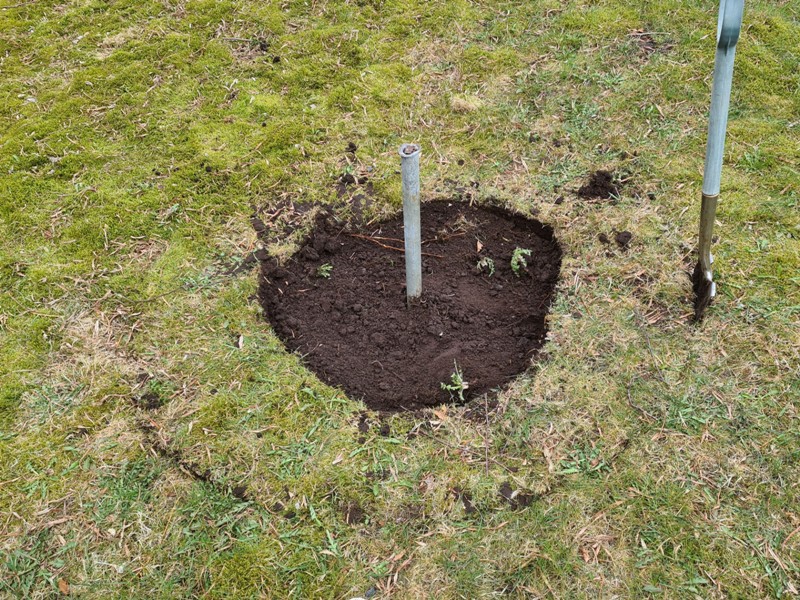

SÅ ER DE MIDTERSTE GRÆSTØRV TAGET OP

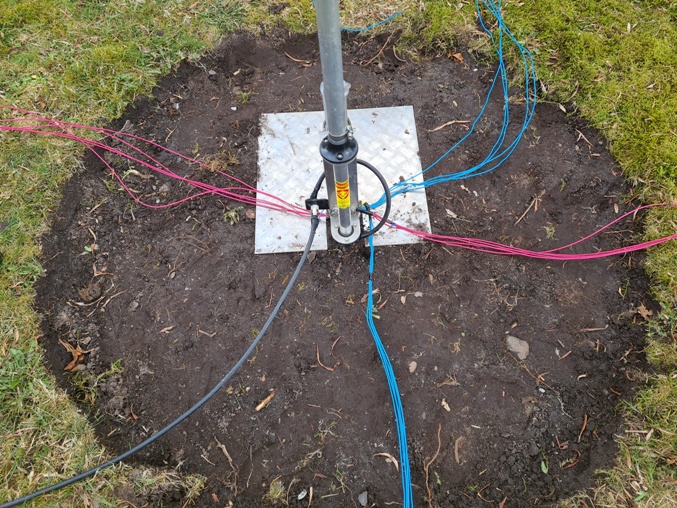

SÅ ER DER KLAR TIL ANTENNE OG REDIALER,

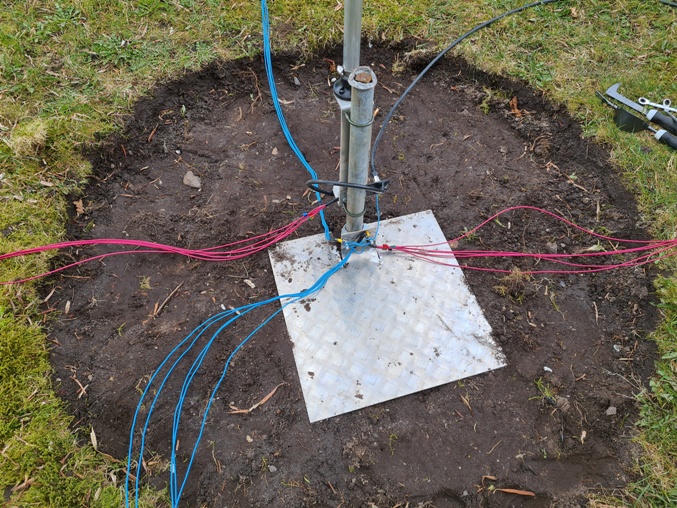

2 GANGE ORIGINALE REDIALER DE RØDE, OG SÅ HAR JEG LAVET 2 EKSTRA SÆT, I BLÅ


Hustler shortwave vertical antennas for 4, 5 or 6 bands. These antennas are used by many radio amateurs worldwide with great success. The special feature of these antennas is that the resonance for each band can be adjusted individually. There are very few other vertical antennas which can do that! This individual alignment allows you to adapt the antenna at it's location, for example when you must choose an installation place near a house or tree.





The antennas can be either on the ground or increased, for example on a pole or roof be built. The producer writes that when mounted on the ground were not necessarily need radials. But this will only work well with very good ground conductivity. We always recommend the use of radials. With increased lubrication is required in any case radials.

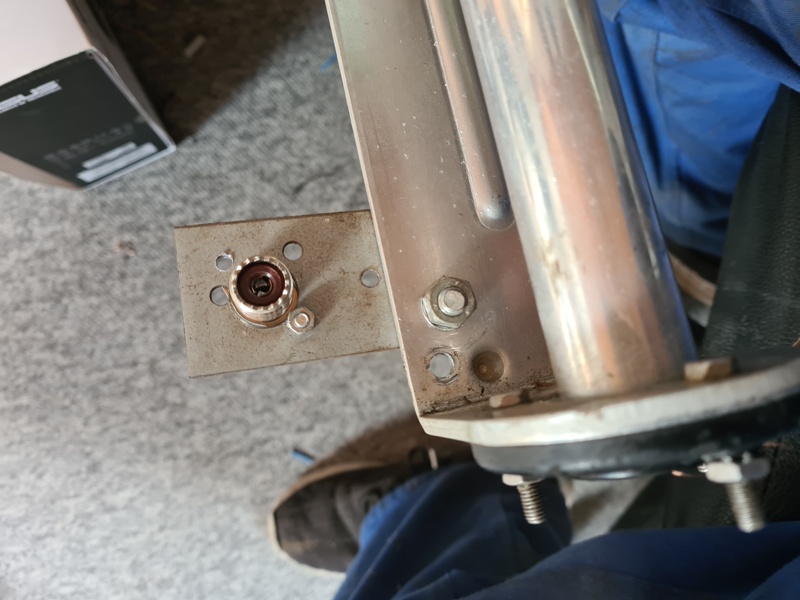

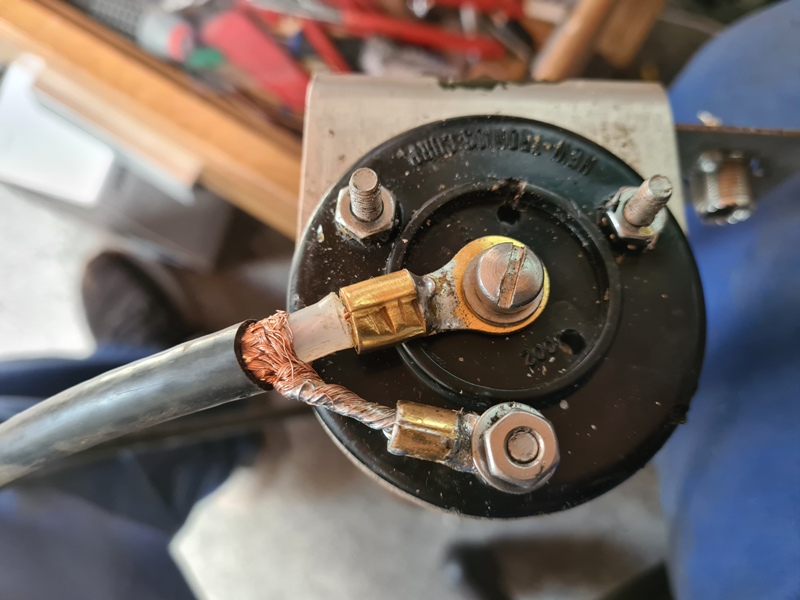

The vertical antennas are supplied with a solid stainless steel mast bracket. The radiator is made of 3.2 cm thick, corrosion-resistant aluminum tube. All traps are made of fiberglass. The antennas have a screw for direct connection of the coaxial cable. The length of the antenna wire does not matter.

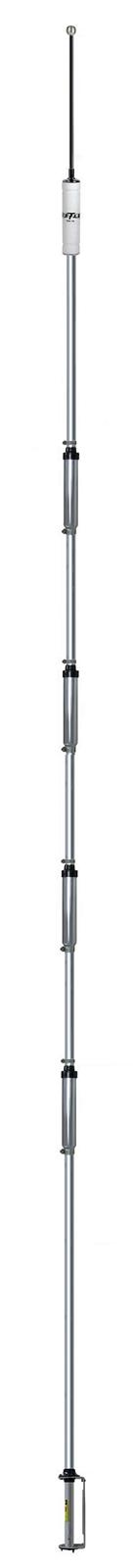

HUSTLER 6-BTV 6 Band Vertical, 10/15/20/30/40/80m

Hustler
SKU
11216
Multiband HF vertical antenna (incl. 30m/80m) with independantly adjustable resonators and various mounting options
€336.97
kan købes ved wimo og MWE I Hanstholm,
